Dump Trucks
Dongfeng KR / KC 4×2 Dump Truck 180 / 210 / 240 / 260 / 270HP Available
Dongfeng KR / KC 4×2 Dump Truck 180HP 240HP 260HP 270HP Light Duty Tipper Truck Dongfeng KR / KC 4×2 dump truck is a light-to-medium duty tipper truck designed for short-distance bulk material transportation and rear tipping unloading. It is suitable for urban construction, municipal engineering, village road projects, farm transportation, landscaping projects and small-to-medium construction sites.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | Dongfeng |
| Model Series | KR / KC |
| Drive Type | 4×2 |
| Engine Power | 180HP / 210HP / 240HP / 260HP / 270HP available, higher power optional according to stock |
| Engine Brand | Dongfeng Cummins / Dongfeng DDi / Yuchai / Weichai optional |
| Engine Model | DDi45 / ISD / ISDe / YC6 / WP series optional |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V optional |
| Transmission | FAST / Dongfeng 8-speed / 9-speed / 10-speed manual transmission |
| Cab | Dongfeng KR / KC cab, flat roof cab, sleeper optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 6,800-8,500 mm L × 2,490-2,550 mm W × 3,000-3,600 mm H |
| Wheelbase | Approx. 3,600-5,000 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 4,200-5,800 mm L × 2,200-2,500 mm W × 800-1,500 mm H |
| Cargo Box Volume | Approx. 8-18 m³, depending on box size |
| Loading Capacity | Approx. 8-20 tons, depending on configuration and local regulations |
| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 1 front steering axle + 1 rear drive axle |
| Front Axle | 5.5T / 6.5T / 7.5T / 9T front axle optional |
| Rear Axle | 9T / 10T / 11.5T / 13T rear drive axle optional |
| Frame | Reinforced medium-duty or heavy-duty frame optional |
| Suspension | Heavy-duty multi-leaf spring suspension |
| Tire Model | 9.00R20 / 10.00R20 / 11.00R20 / 11R22.5 / 12R22.5 optional |
| Tire Quantity | 6 tires + 1 spare tire |
| Fuel Tank | Approx. 200-300 L, steel or aluminum fuel tank optional |
| Brake System | Air brake system, ABS optional |
| Max Speed | Approx. 75-95 km/h, depending on configuration |
| Color | Red, white, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Product Details
Typical Applications
- Urban construction material transportation
- municipal engineering
- village road construction
- landscaping projects
- sand, gravel and soil transport
- farm and agricultural material transport
- road maintenance
- small quarry material transfer
- construction waste transportation
- short-distance building material delivery
- narrow road transportation
- small and medium bulk cargo transport
Available Configurations
- 180HP, 210HP, 240HP, 260HP or 270HP engine
- Dongfeng Cummins, Dongfeng DDi, Yuchai or Weichai engine
- Euro II / Euro III / Euro IV / Euro V emission standard
- left-hand drive or right-hand drive
- KR cab or KC cab
- flat roof cab or sleeper cab
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- 9.00R20, 10.00R20, 11.00R20, 11R22.5 or 12R22.5 tires
- reinforced rear axle
- air conditioner
- ABS
- steel or aluminum fuel tank
- customized paint color, logo and export markings
Buyer Support
- Dongfeng KR / KC 4×2 dump truck has a compact body and flexible operation, suitable for city roads, village roads and narrow construction sites
- 4×2 drive type provides lower purchase cost, lower fuel consumption and easier maintenance compared with larger 6×4 and 8×4 dump trucks
- Dongfeng Cummins / DDi engine options offer reliable power and stable performance
- reinforced dump body improves durability for sand, gravel, soil and construction material transport
- hydraulic rear tipping system improves unloading efficiency
- KR / KC cab provides practical comfort and good visibility for daily operation
- multiple emission standards and driving-side options are available for different export markets
- used, refurbished and customized trucks can be supplied with flexible configuration

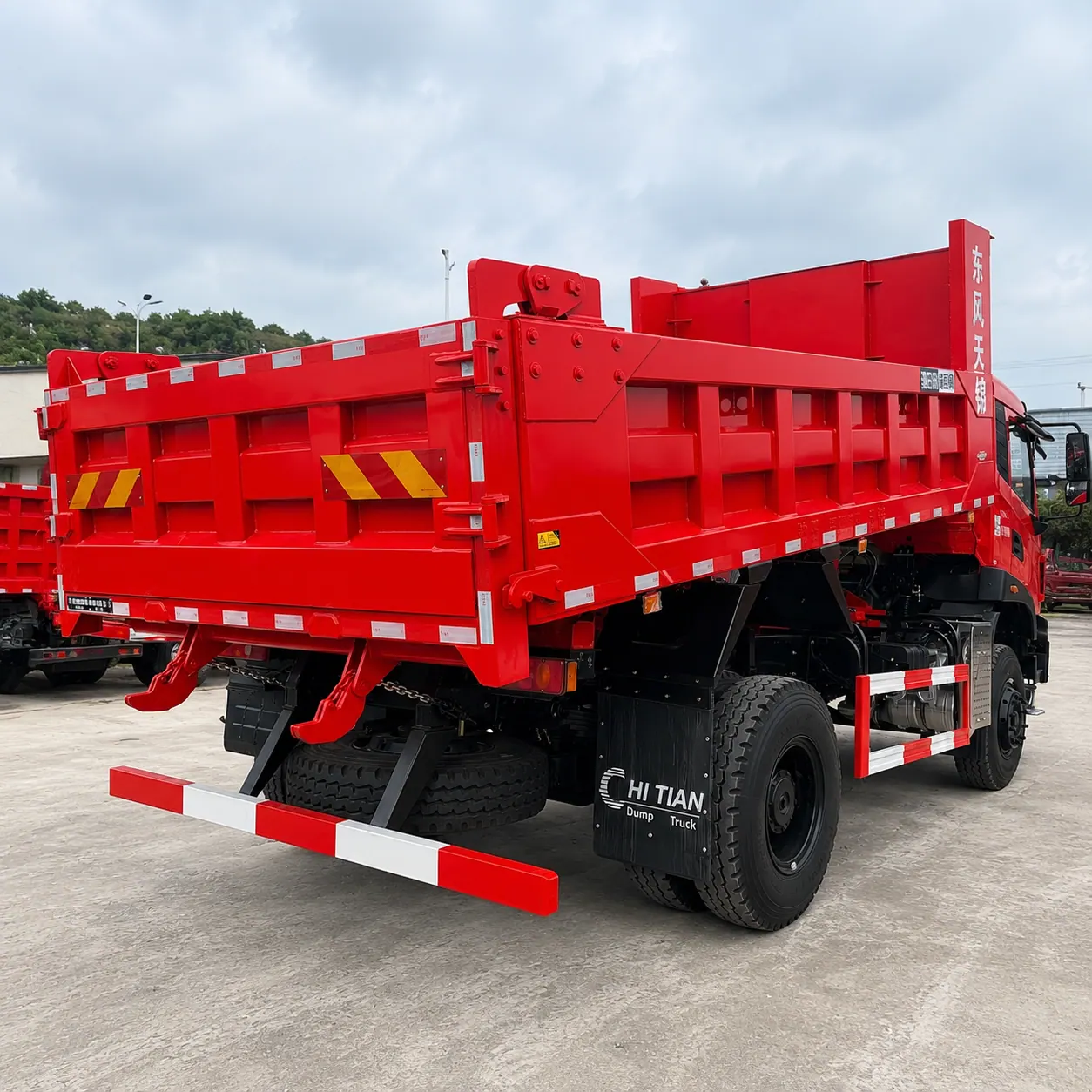

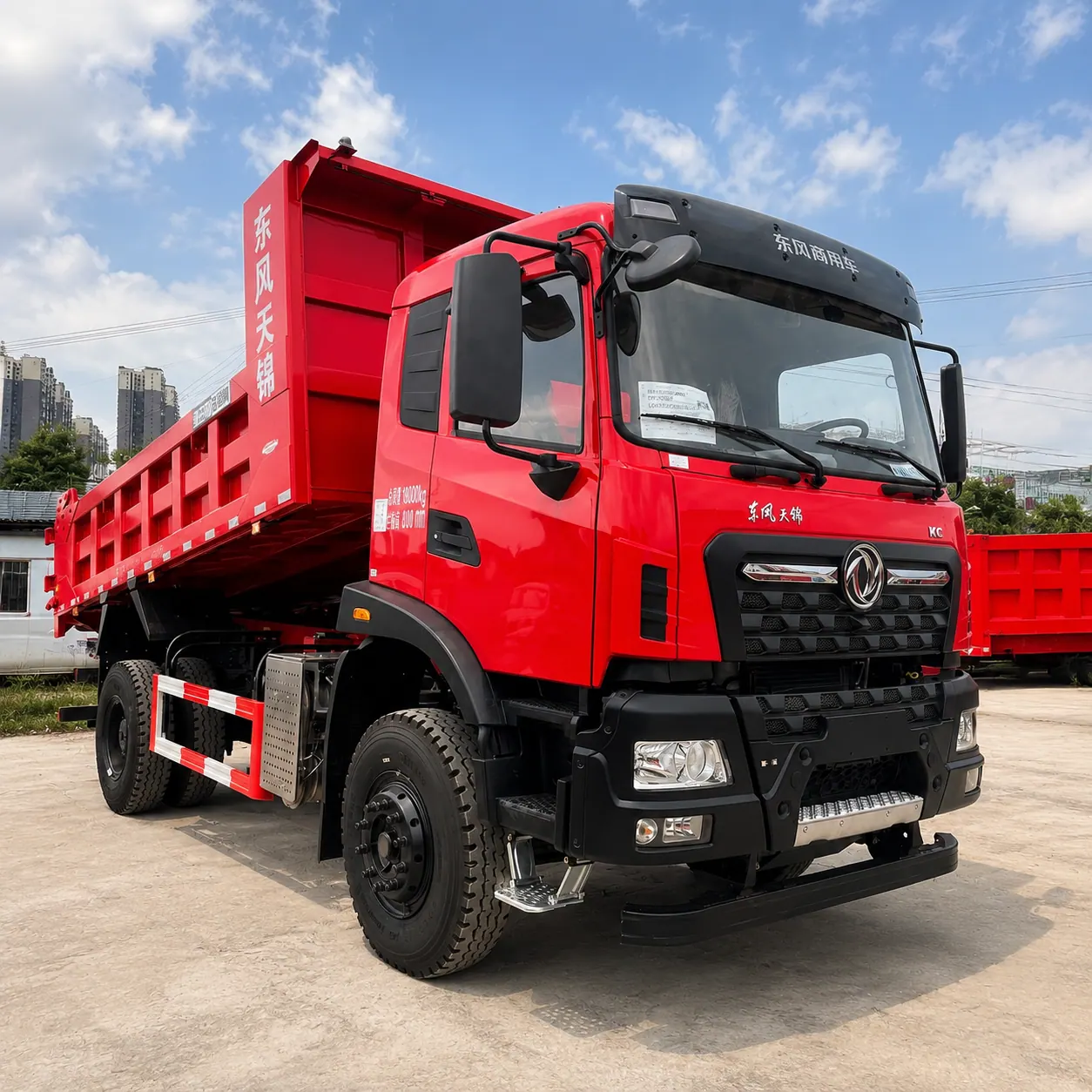

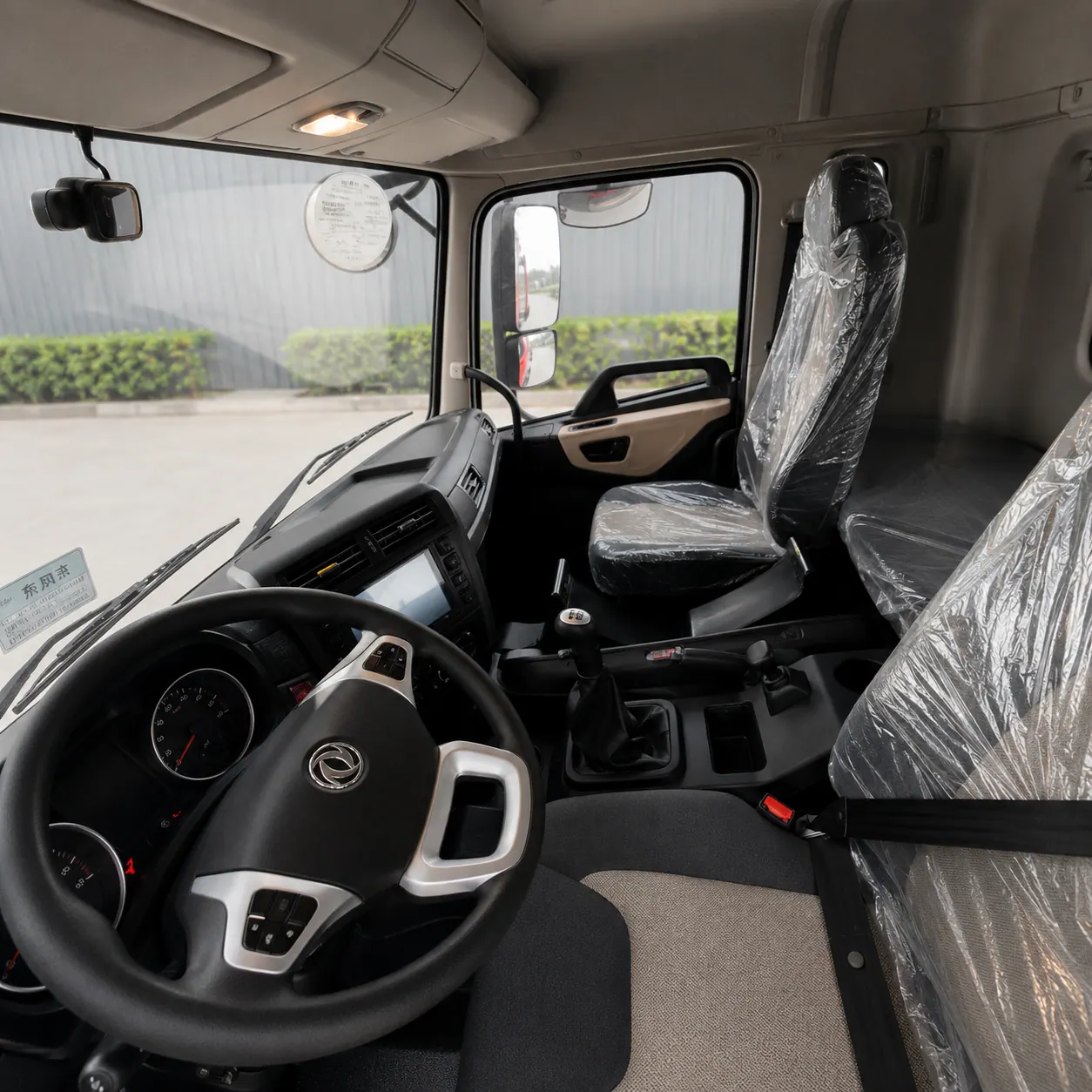

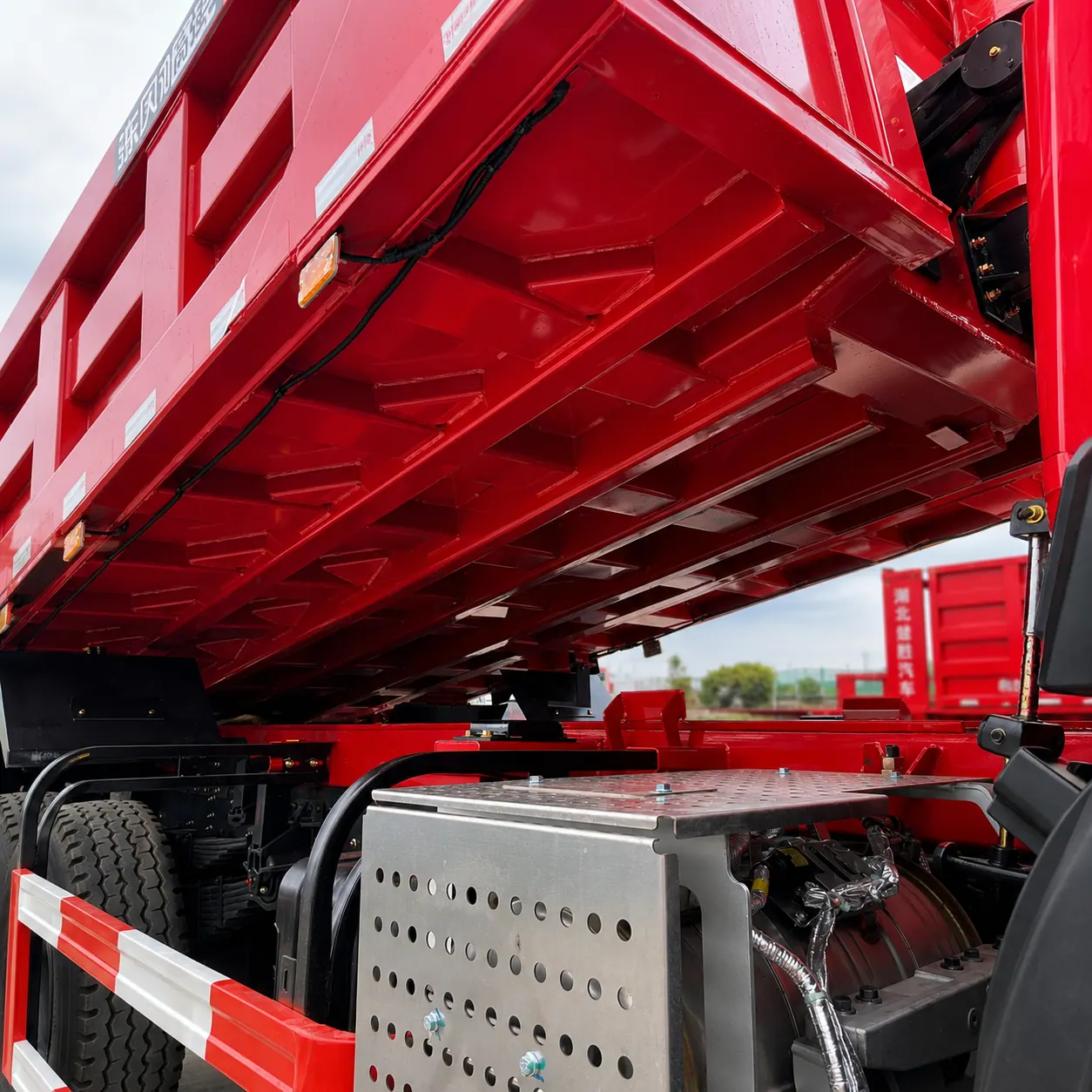

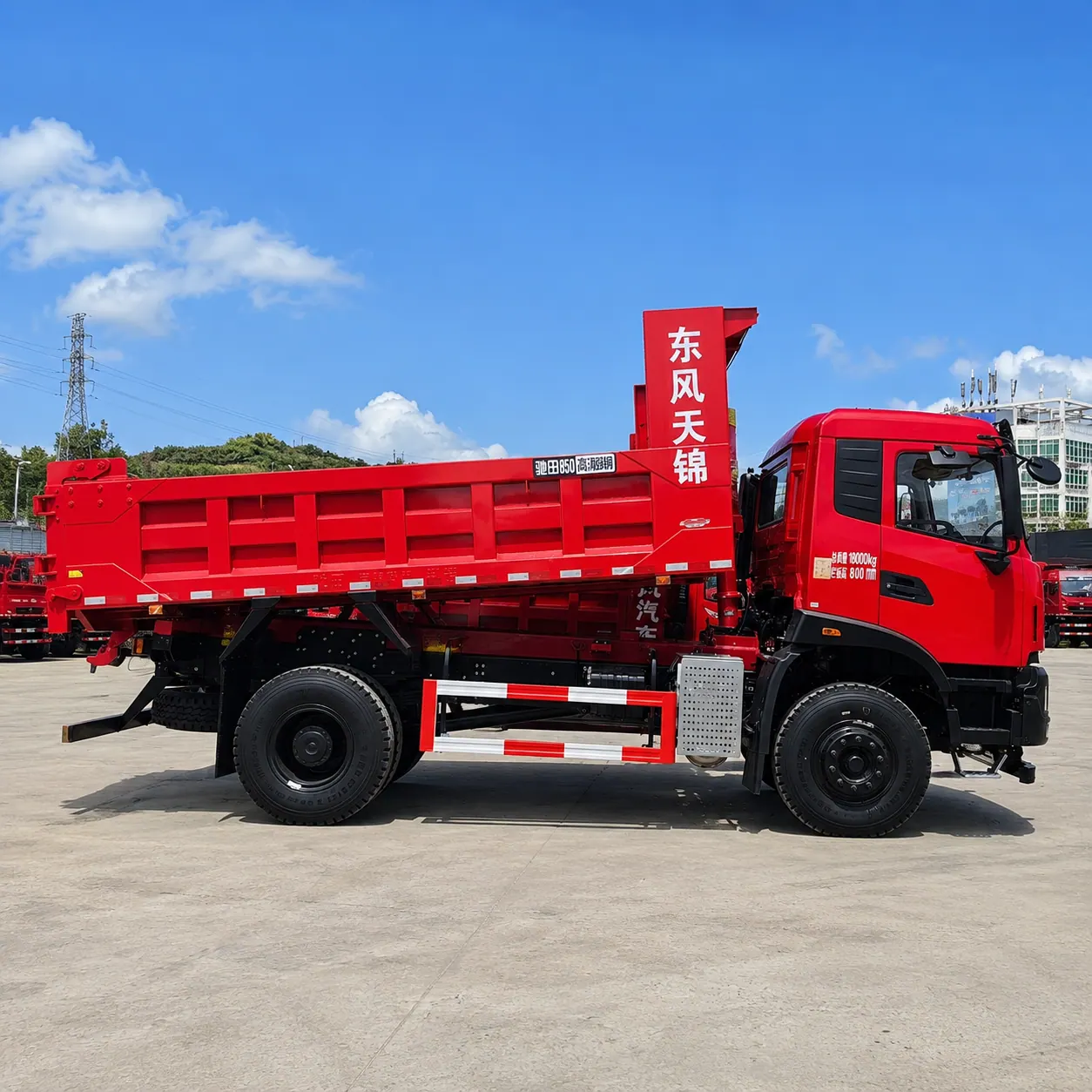

Product Display
