Dongfeng Garbage Compactor Truck 120 / 140 / 170 / 200 / 270HP 5 / 6 / 8 / 10 / 12 / 13 / 16 / 20CBM Available
Dongfeng Garbage Compactor Truck is a specialized municipal sanitation vehicle designed for the collection, compression and transportation of household waste, commercial refuse and municipal solid waste. The vehicle combines a reliable Dongfeng commercial chassis with a sealed garbage body, rear loading hopper, hydraulic compression system, sliding plate, scraper, ejector plate, bin lifting mechanism, sewage collection system and electro-hydraulic control system. Different Dongfeng chassis platforms are available for light-, medium- and heavy-duty waste collection. Common configurations include approximately 120HP, 140HP, 170HP, 200HP and 270HP diesel engines, with garbage-body capacities ranging from approximately 5CBM to 20CBM. Representative Dongfeng D7 configurations use 120HP engines with 5–6CBM bodies, medium-duty versions can use approximately 170–200HP engines with 10–13CBM bodies, while heavy-duty three-axle versions are available with 270HP engines and approximately 20CBM garbage bodies. The rear-loading compression system uses hydraulically driven sliding plates and scrapers to move waste from the loading hopper into the sealed garbage body and compress it to reduce volume. Automatic, semi-automatic and manual operating modes are available according to the control system. Hydraulic ejector plates unload the compacted waste at transfer stations, landfills or treatment facilities without tipping the entire garbage body. The truck can be equipped with hydraulic lifting mechanisms compatible with common municipal waste bins, while sealed body construction and an integrated sewage tank help control wastewater and reduce secondary pollution during collection and transportation. Different loading mechanisms, body capacities and hydraulic systems can be selected according to municipal sanitation requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Garbage Compactor Truck / Compression Garbage Truck / Rear Loader Garbage Truck / Refuse Collection Truck |
| Brand | Dongfeng |
| Chassis Brand | Dongfeng |
| Common Chassis Series | Dongfeng D6 / D7 / Duolika / Huashen / KR / Tianjin or equivalent Dongfeng chassis |
| Drive Type | 4×2 / 6×4 available |
| Engine Power | 120HP / 140HP / 170HP / 200HP / 270HP available according to chassis and stock |
| Engine Brand | Dongfeng Cummins / Yuchai / Chaoyang / Dongfeng or equivalent according to chassis |
| Engine Type | Four-cylinder / six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro IV / Euro V / Euro VI available according to model year and export market |
| Transmission Type | Manual transmission |
| Transmission Gears | 5-speed / 6-speed / 8-speed / 9-speed manual transmission according to chassis |
| PTO | Power take-off for hydraulic garbage compactor system |
| Cab Type | Single-row / extended Dongfeng cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected medium- and heavy-duty chassis |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 6,000–10,500 mm depending on chassis and body capacity |
| Overall Width | Approx. 2,000–2,550 mm |
| Overall Height | Approx. 2,500–3,300 mm |
| Wheelbase | Approx. 3,300–4,500 mm for common 4×2 versions; multi-axle wheelbases available for 6×4 |
| Gross Vehicle Weight | Approx. 7–25 tons depending on chassis and garbage-body configuration |
| Curb Weight | Approx. 4,000–11,000 kg depending on chassis and upper body |
| Rated Payload | According to chassis, body capacity and local certification |
| Maximum Driving Speed | Approx. 90–100 km/h |
| Front Axle | Dongfeng steering axle according to chassis |
| Rear Axle | Dongfeng heavy-duty drive axle |
| Rear Axle Type | Single-reduction / heavy-duty drive axle according to chassis |
| Differential Lock | Available on selected heavy-duty configurations |
| Frame | Reinforced high-strength steel chassis frame |
| Subframe | Reinforced garbage-compactor special-purpose subframe |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / bogie suspension |
| Tire Model | 7.00R16 / 8.25R16 / 9.00R20 / 10.00R20 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 chassis; spare tire available |
| Fuel Tank | Approx. 100–300 L depending on chassis |
| Brake System | Hydraulic / dual-circuit compressed-air brake system according to chassis |
| Auxiliary Brake | Engine exhaust brake available on medium- and heavy-duty chassis |
| ABS | Available according to chassis |
| Electrical System | 24V |
| Garbage Body Type | Sealed rear-loading compression body |
| Garbage Body Capacity | Approx. 5CBM / 6CBM / 8CBM / 10CBM / 12CBM / 13CBM / 16CBM / 20CBM available |
| Light-Duty Body Capacity | Approx. 5–8 CBM |
| Medium-Duty Body Capacity | Approx. 10–16 CBM |
| Heavy-Duty Body Capacity | Approx. 18–20 CBM or larger according to chassis |
| Body Material | High-strength carbon steel / corrosion-resistant steel optional |
| Common Body Steel | Q235 / 16Mn / high-strength steel or equivalent |
| Body Side Thickness | Approx. 4–5 mm or customized |
| Body Floor Thickness | Approx. 4–6 mm or customized |
| Rear Hopper Volume | Approx. 1.5–2.5 CBM depending on configuration |
| Loading Type | Rear loading |
| Compression Type | Hydraulic bidirectional compression |
| Compression Ratio | Approx. 3:1–4:1 depending on compactor system |
| Maximum Compression Force | Up to approx. 12 tons on heavy-duty configurations |
| Hydraulic Working Pressure | Approx. 16–20 MPa depending on system |
| Compression Mechanism | Sliding plate + scraper compression mechanism |
| Sliding Plate | Hydraulic sliding plate |
| Scraper | Hydraulic scraper mechanism |
| Ejector Plate | Hydraulic waste ejector plate |
| Filling Cycle Time | Approx. 25–40 seconds |
| Discharge Time | Approx. 20–60 seconds depending on configuration |
| Waste Discharge Type | Hydraulic push-out discharge |
| Hydraulic Pump | PTO-driven hydraulic gear pump |
| Hydraulic Cylinder | Heavy-duty double-acting hydraulic cylinders |
| Hydraulic Control Valve | Multi-way hydraulic control valve |
| Hydraulic Oil Tank | Available |
| Control System | Electro-hydraulic automatic + manual control |
| Automatic Operation | Available |
| Semi-Automatic Operation | Available |
| Manual Operation | Available |
| PLC Control System | Optional |
| Wireless Remote Control | Optional |
| Cab-Mounted Control | Optional |
| Rear Control Panel | Available |
| Emergency Stop | Available |
| Emergency Manual Control | Available |
| Bin Lifting Mechanism | Hydraulic rear bin lifter optional |
| 120L Waste Bin | Compatible according to lifting mechanism |
| 140L Waste Bin | Compatible according to lifting mechanism |
| 240L Waste Bin | Compatible according to lifting mechanism |
| 350L Waste Bin | Compatible according to lifting mechanism |
| 660L Waste Bin | Optional according to lifting mechanism |
| 1100L Waste Bin | Optional according to lifting mechanism |
| Dual Bin Lifting Device | Optional |
| Bucket Loading Device | Optional |
| Ground Hopper | Optional |
| Swing-Arm Loading Device | Optional |
| Rear Hopper | Reinforced sealed loading hopper |
| Hopper Lifting | Hydraulic lifting |
| Rear Tailgate | Hydraulic opening and locking |
| Tailgate Sealing | Rubber sealing strip / leak-resistant sealing structure |
| Sewage Tank | Available |
| Sewage Tank Capacity | Approx. 200–500 L depending on body configuration |
| Sewage Drain | Drain valve / sewage outlet |
| Leakage Prevention | Sealed garbage body + tailgate sealing + sewage collection system |
| Anti-Corrosion Treatment | Industrial primer + topcoat / anti-corrosion coating |
| Rear Working Lights | Optional |
| LED Warning Lights | Optional |
| Rear Warning Board | Optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Monitoring System | Optional |
| Toolbox | Available / optional |
| Fire Extinguisher | Available / optional |
| Spare Tire | Available |
| Color | White, green, blue, yellow, orange, red or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis series, engine, drive type, garbage-body capacity, body material, steel thickness, compression system, bin lifter, loading mechanism, sewage tank, hydraulic system, control system, steering side, cameras, warning equipment, paint color, company logo and export markings |
Product Details
Typical Applications
- Municipal household waste collection
- urban sanitation
- residential-community waste collection
- rural household waste collection
- commercial-area waste collection
- shopping-center waste collection
- wholesale-market sanitation
- restaurant and food-market waste collection
- factory waste collection
- industrial park sanitation
- school and campus waste collection
- hospital non-hazardous waste collection
- airport sanitation
- railway-station sanitation
- bus-station waste collection
- port and terminal sanitation
- logistics-park waste collection
- public-area sanitation
- municipal waste transfer
- daily solid-waste collection and transportation.
Available Configurations
- 120HP, 140HP, 170HP, 200HP or 270HP diesel engine
- Dongfeng D6, D7, Duolika, Huashen, KR, Tianjin or equivalent chassis
- Dongfeng Cummins, Yuchai, Chaoyang or equivalent engine
- 4×2 or 6×4 drive configuration
- left-hand drive or right-hand drive
- Euro III / Euro IV / Euro V / Euro VI emission configuration according to chassis
- 5-speed, 6-speed, 8-speed or 9-speed manual transmission
- 5CBM, 6CBM, 8CBM, 10CBM, 12CBM, 13CBM, 16CBM or 20CBM sealed garbage compactor body
- high-strength carbon-steel garbage body
- customized body-side and floor thickness
- hydraulic sliding-plate and scraper compression system
- approximately 3:1–4:1 compression ratio
- hydraulic ejector plate
- automatic compression cycle
- electro-hydraulic control
- PLC automatic control
- manual emergency control
- wireless remote control
- cab-mounted controls
- rear operation panel
- 120L, 140L, 240L, 350L, 660L or 1100L waste-bin lifting mechanisms according to configuration
- single or dual bin lifter
- ground hopper
- bucket loading device
- swing-arm loading mechanism
- reinforced rear hopper
- hydraulic tailgate
- sewage collection tank
- leakage-resistant sealing system
- reversing camera
- rear working camera
- 360° monitoring system
- LED warning equipment
- air conditioner
- ABS
- spare tire
- toolbox
- fire extinguisher
- customized body capacity, loading mechanism, compression system, paint color, company logo and export markings.
Buyer Support
- Dongfeng Garbage Compactor Truck combines a widely used Dongfeng commercial chassis with a professional rear-loading hydraulic waste-compression system for municipal and commercial solid-waste collection
- light-, medium- and heavy-duty Dongfeng chassis configurations provide flexible solutions for narrow residential roads, city collection routes, industrial areas and high-volume municipal waste transfer. 120HP, 140HP, 170HP, 200HP and 270HP power options are available for different garbage-body sizes and operating conditions
- approximately 5–20CBM garbage-body configurations allow the platform to cover small community collection vehicles, medium-capacity municipal trucks and heavy-duty waste-transfer applications. Dongfeng D7 models are available with approximately 5–6CBM bodies, while heavy-duty three-axle configurations can reach approximately 20CBM. The hydraulic sliding-plate and scraper mechanism compresses loose waste inside the sealed body, increasing effective loading capacity and reducing the number of trips required between collection areas and disposal facilities
- automatic, semi-automatic and manual operating modes provide flexible operation for different sanitation projects. Hydraulic ejector-plate unloading allows compacted waste to be pushed directly from the body without lifting the entire garbage container
- optional lifting devices support multiple municipal bin sizes and can be configured for individual bins, dual bins, ground hoppers or other loading systems. The sealed garbage body, hydraulic rear tailgate and sewage collection system help reduce liquid leakage and secondary pollution during transportation
- reinforced steel construction and special-purpose subframes provide durability for repeated loading and compression cycles
- electro-hydraulic controls simplify operation and reduce manual handling. Left-hand-drive and right-hand-drive versions are available for different export markets
- chassis series, engine, body capacity, compression mechanism, bin lifter, hydraulic system, sewage tank, control system, cameras, warning equipment, paint color and other configurations can be customized according to municipal sanitation and waste-management project requirements.

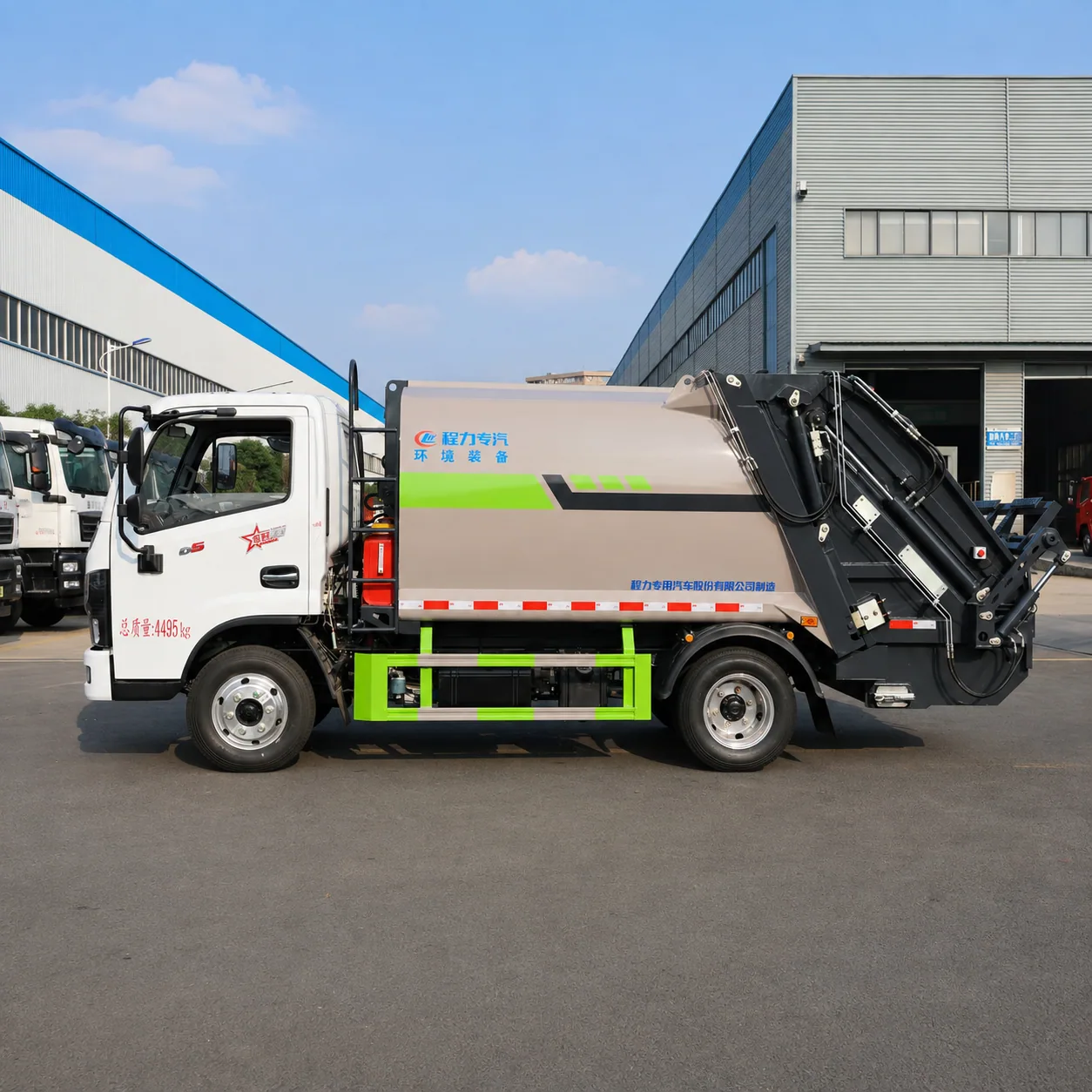

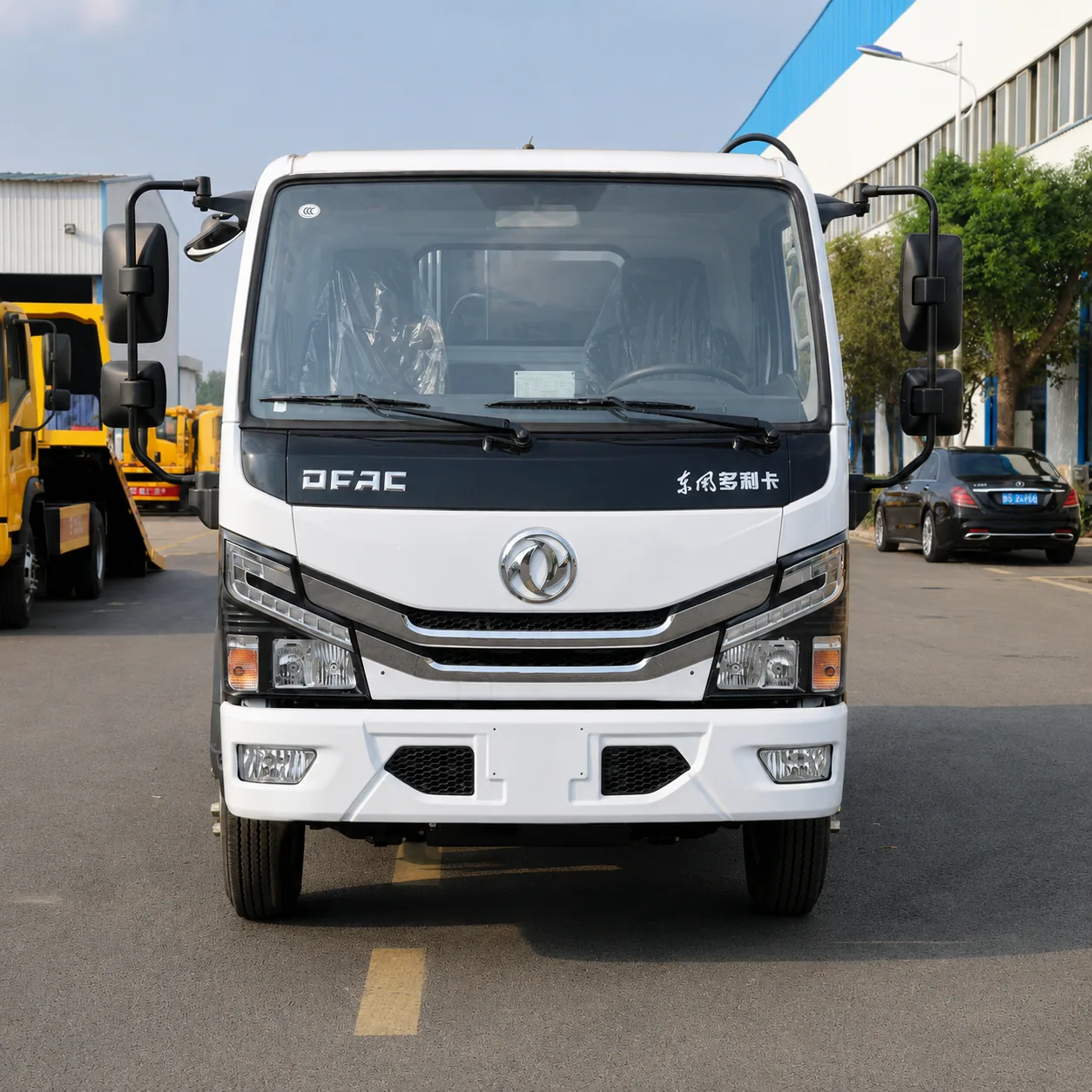

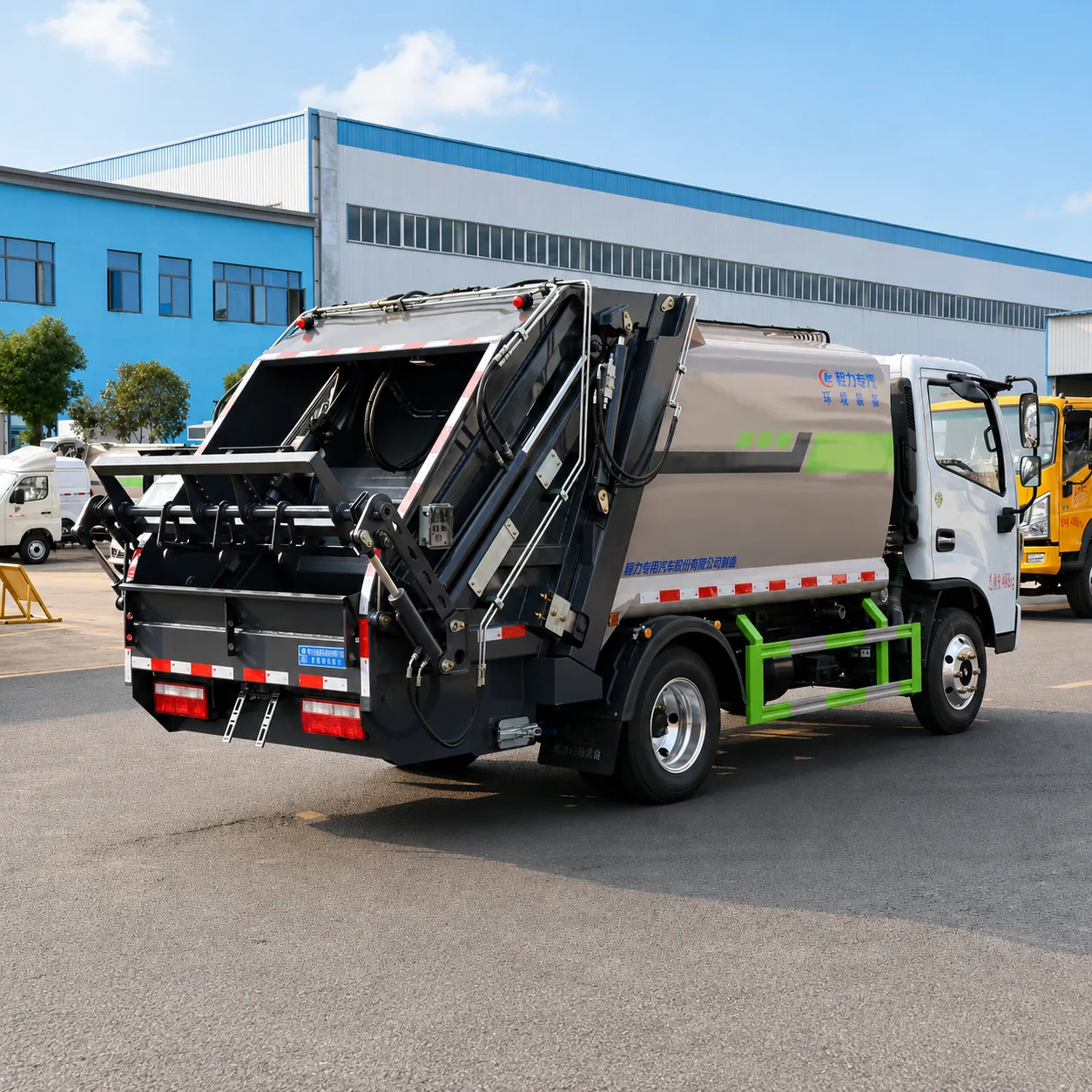

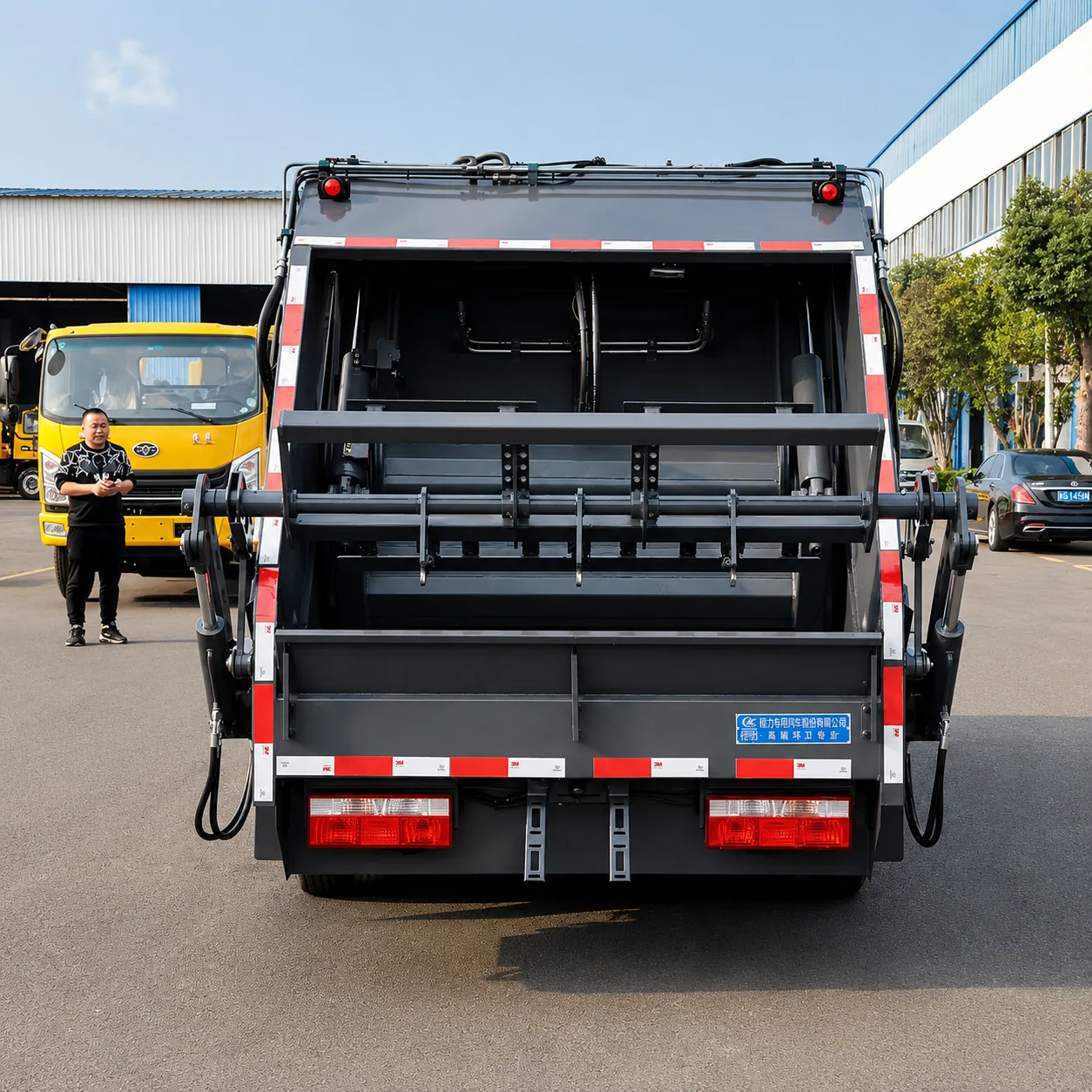

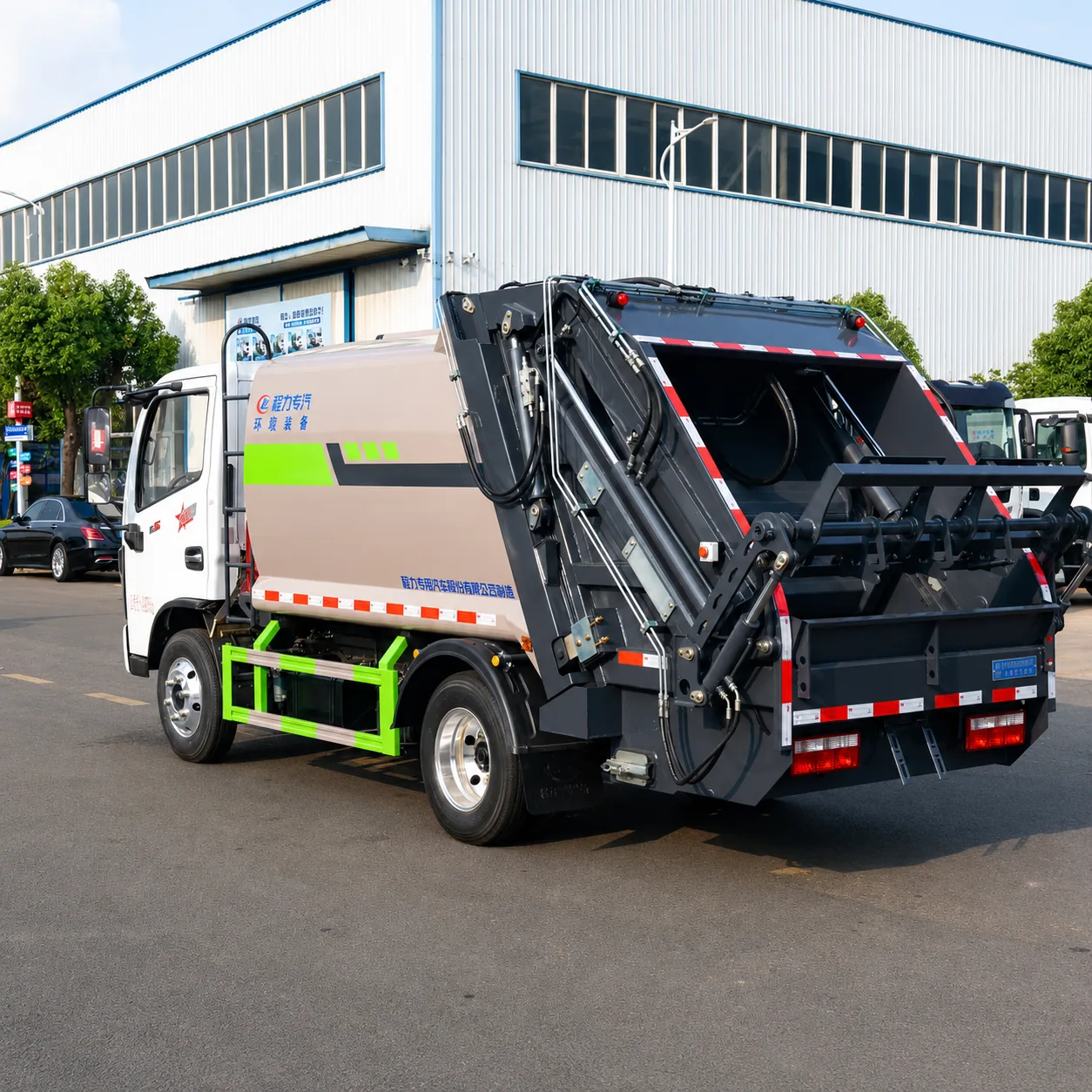

Product Display
