Dayun 4×2 Dump Truck 130 / 160 / 180 / 200 / 220HP Available
Dayun 4×2 Dump Truck 130HP 160HP 180HP 200HP 220HP Light Duty Tipper Truck Dayun 4×2 dump truck is a light-to-medium duty tipper truck designed for short-distance bulk material transportation and rear tipping unloading. It is suitable for urban construction, municipal engineering, village road projects, road maintenance, farm transportation, landscaping projects and small-to-medium construction sites.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | Dayun |
| Model Series | Dayun Light / Medium Duty Series |
| Drive Type | 4×2 |
| Engine Power | 130HP / 160HP / 180HP / 200HP / 220HP available, other power optional according to stock |
| Engine Brand | Yuchai / Weichai / Yunnei / Cummins optional according to stock |
| Engine Model | YC4D / YC4E / WP4 / WP6 / Yunnei series optional |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V optional, Euro VI according to stock |
| Transmission | 6-speed / 8-speed / 9-speed / 10-speed manual transmission optional |
| Cab | Dayun single cab, wide cab or sleeper cab optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 5,900-8,200 mm L × 2,200-2,550 mm W × 2,700-3,500 mm H |
| Wheelbase | Approx. 3,300-4,700 mm |
| GVW | Approx. 10,000-18,000 kg, depending on model and market |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 3,800-5,600 mm L × 2,100-2,400 mm W × 700-1,500 mm H |
| Cargo Box Volume | Approx. 6-16 m³, depending on box size |
| Loading Capacity | Approx. 5-18 tons, depending on configuration and local regulations |
| Hydraulic System | Middle lifting system or front lifting cylinder optional |
| Axle Configuration | 1 front steering axle + 1 rear drive axle |
| Front Axle | 4T / 5.5T / 6.5T / 7.5T optional |
| Rear Axle | 7T / 9T / 10T / 13T rear drive axle optional |
| Frame | Reinforced light-duty or medium-duty frame optional |
| Suspension | Front and rear leaf spring suspension |
| Tire Model | 8.25R16 / 8.25R20 / 9.00R20 / 10.00R20 / 11.00R20 optional |
| Tire Quantity | 6 tires + 1 spare tire |
| Fuel Tank | Approx. 120-300 L |
| Brake System | Air brake system, ABS optional |
| Max Speed | Approx. 75-95 km/h, depending on configuration |
| Color | White, blue, red, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Product Details
Typical Applications
- Urban construction material transportation
- municipal engineering
- village road construction
- landscaping projects
- sand, gravel and soil transport
- farm and agricultural material transport
- road maintenance
- small quarry material transfer
- construction waste transportation
- short-distance building material delivery
- narrow road transportation
- small and medium bulk cargo transport
Available Configurations
- 130HP, 160HP, 180HP, 200HP or 220HP engine
- Yuchai, Weichai, Yunnei or Cummins engine
- Euro II / Euro III / Euro IV / Euro V emission standard
- left-hand drive or right-hand drive
- single cab, wide cab or sleeper cab
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- middle lifting system or front hydraulic lifting system
- 8.25R16, 8.25R20, 9.00R20, 10.00R20 or 11.00R20 tires
- reinforced rear axle
- air conditioner
- ABS
- spare tire
- customized paint color, logo and export markings
Buyer Support
- Dayun 4×2 dump truck has a compact body and flexible operation, suitable for city roads, village roads and narrow working sites
- 4×2 drive type provides lower purchase cost, lower fuel consumption and easier maintenance compared with larger dump trucks
- multiple engine options can meet different loading and road condition requirements
- reinforced dump body improves durability for sand, gravel, soil and construction material transport
- hydraulic rear tipping system improves unloading efficiency
- medium-duty chassis options provide stronger loading capacity for short-distance bulk transport
- used, refurbished and customized trucks can be supplied with flexible configuration

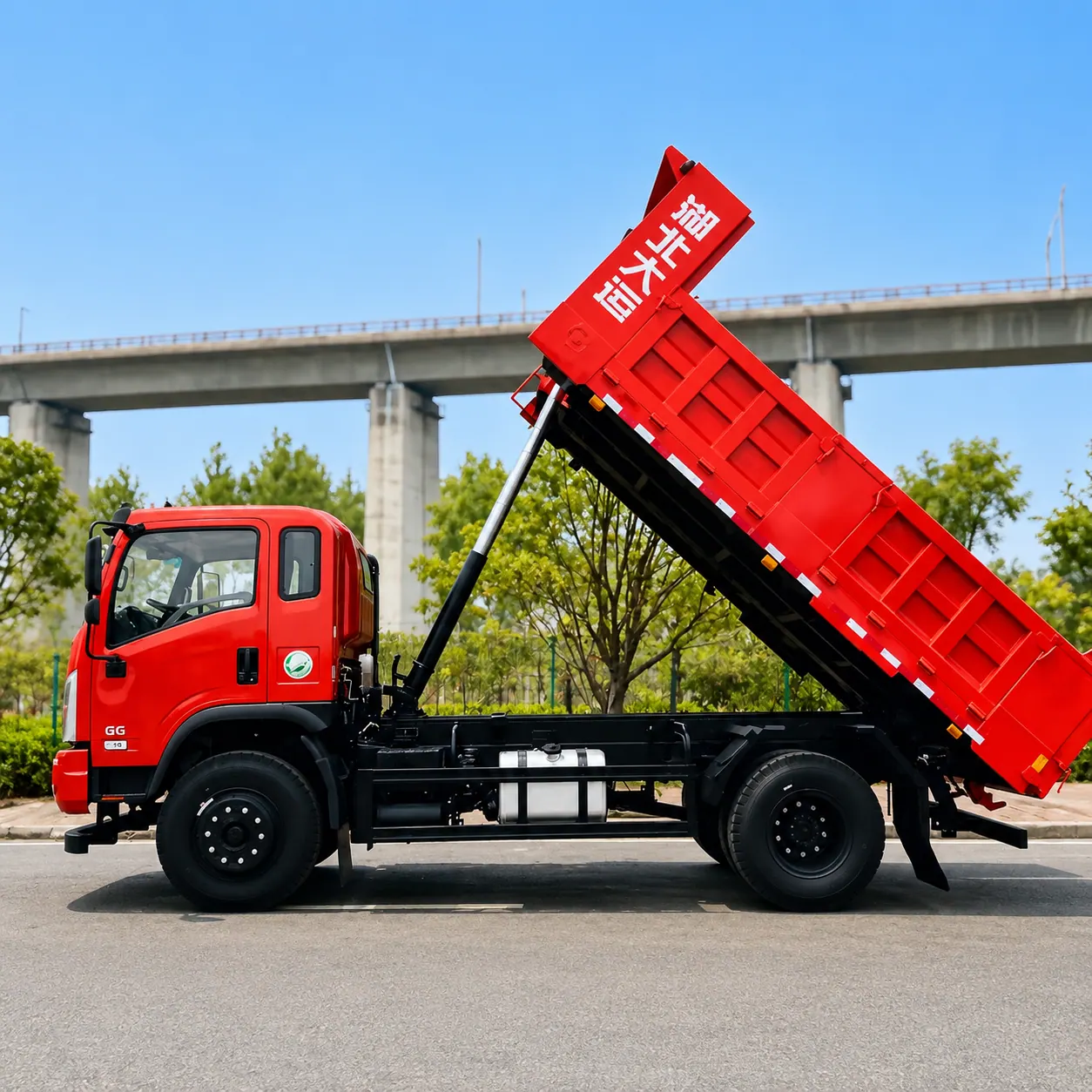

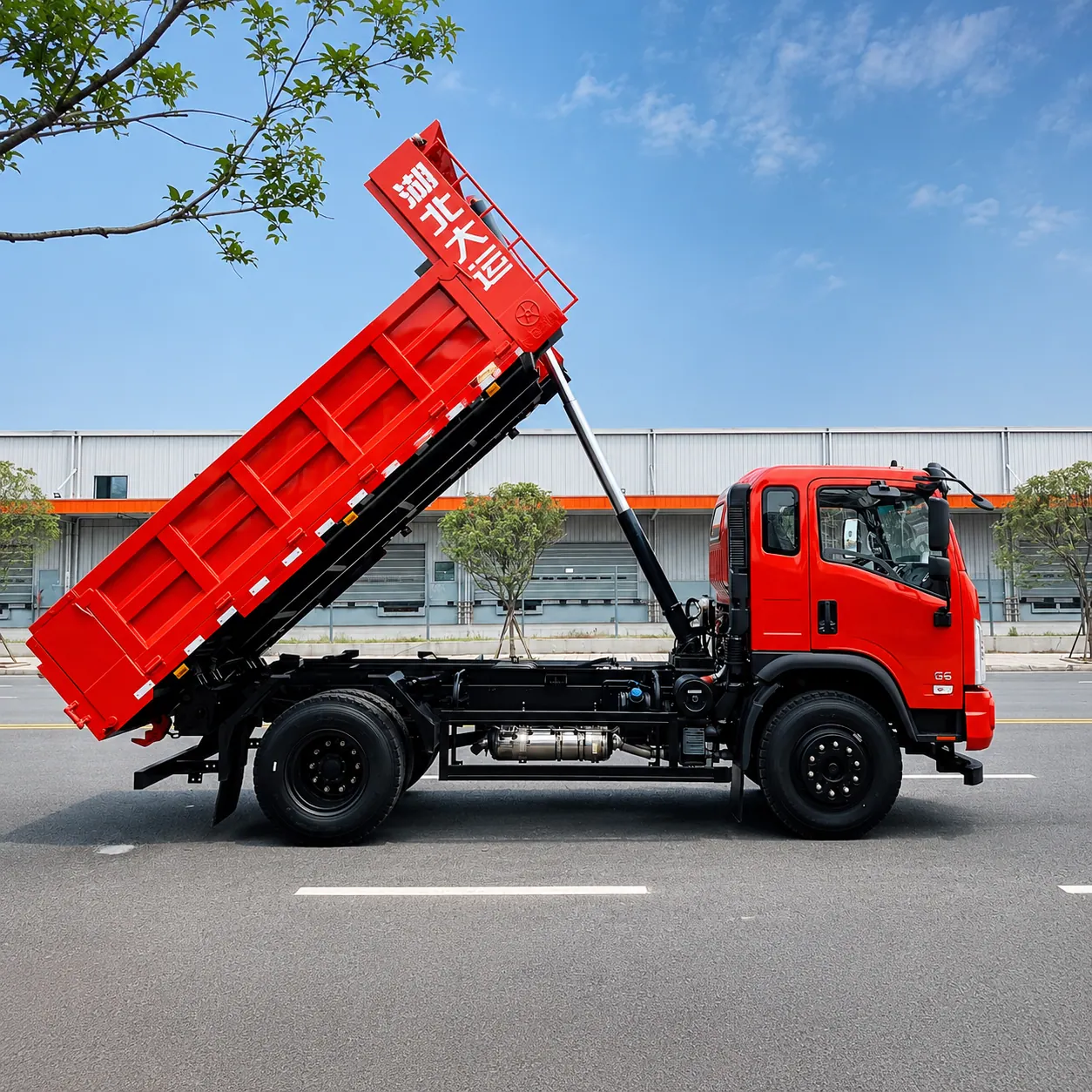

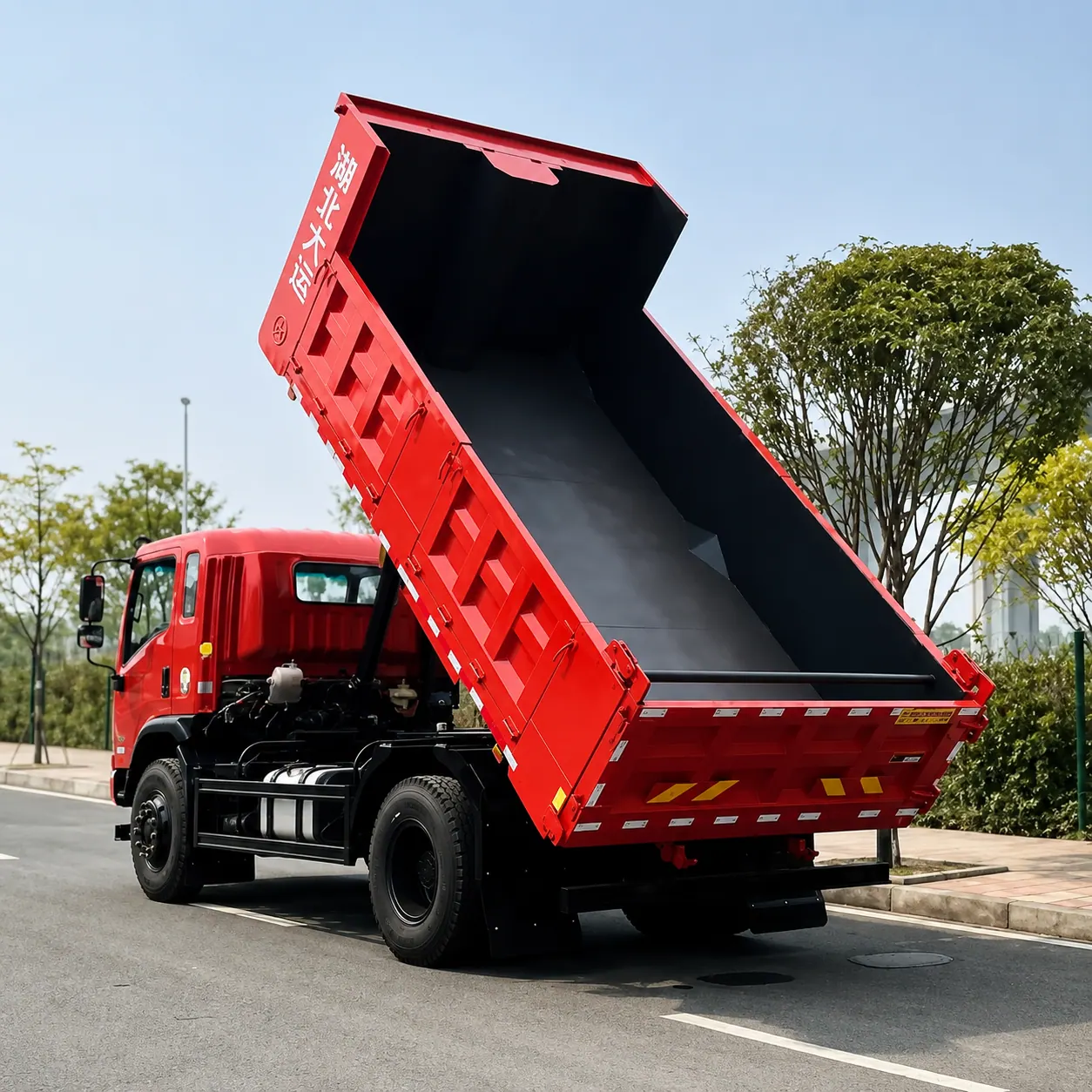

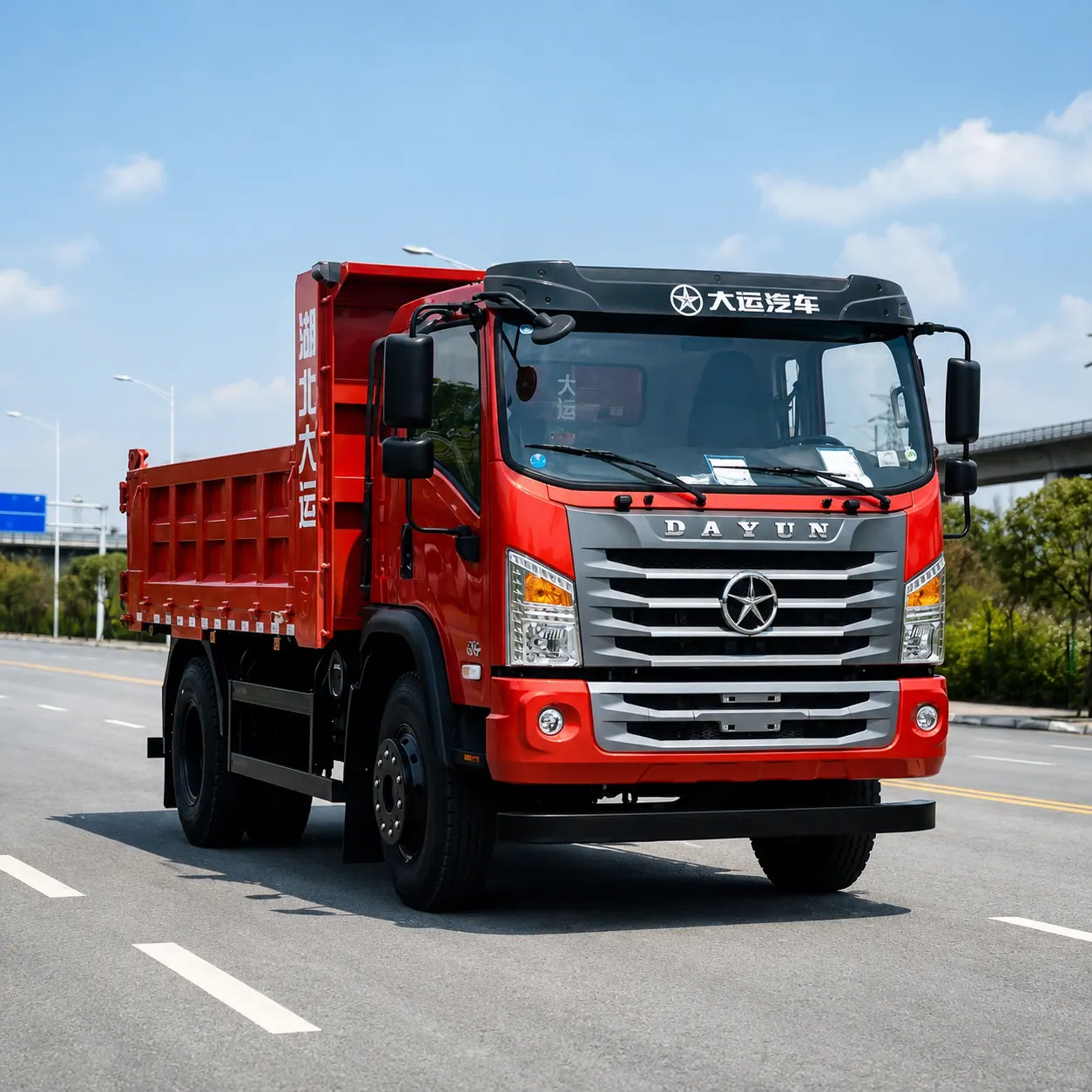

Product Display
